Silicon Carbide UHMWPE Hybrid Protection Plate NIJ III Plus 10x12 Inch SiC PE Composite Multi-Hit Armor Insert
Produktdetails:
| Herkunftsort: | Hunan, China |
| Markenname: | High Broad |
| Zertifizierung: | NIJ 0101.06 Level III+, ISO 9001:2015 |
| Modellnummer: | HB-SIC-HYB-3P-1012 |
| Dokumentieren: | SIC Ballistic Armor Tiles-P...ad.pdf |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stück |
|---|---|
| Preis: | USD 20-75 / Piece |

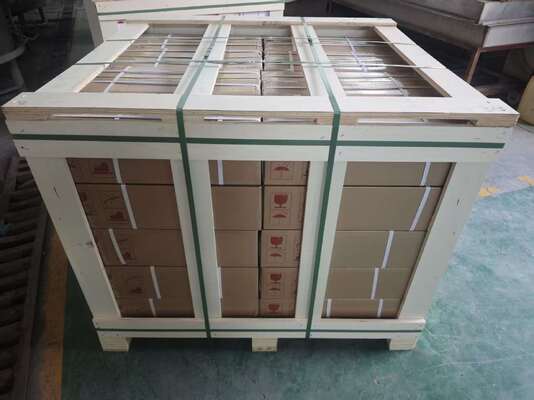

| Verpackung Informationen: | Individuelle EPE-Schaumverpackung mit Wellpappenkarton, Export-Sperrholzpalette |
| Lieferzeit: | 5–7 Werktage für Muster, 15–25 Tage für Großbestellungen |
| Zahlungsbedingungen: | T/T, L/C, Western Union, Paypal |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück pro Monat |
|
Detailinformationen |
|||
| Material: | Siliziumkarbid (SiC) + UHMWPE-Verbundwerkstoff | NIJ-Schutzstufe: | Level III+ (M80 NATO + M855 Green Tip) |
|---|---|---|---|
| Abmessungen: | 10 x 12 Zoll (250 x 300 mm) | Dicke: | 10,5 mm (Gesamtverbund) |
| Flächendichte: | 24,8 kg/m² | Gewicht: | 2,45 kg (Einzelplatte) |
| Härte (Schlagfläche): | 2600 HV (Knoop) | PE-Trägerdicke: | 6,5mm |
| Dicke der Keramikschicht: | 4,0 Millimeter | Multi-Hit-Fähigkeit: | 6 Patronen M80 + 3 Patronen M855 |
| Kurvenart: | SAPI-Schnitt mit mehreren Kurven | Haltbarkeit: | 10 Jahre |
| Betriebstemperatur: | -40°C bis +70°C | ||
| Hervorheben: | Silicon Carbide UHMWPE armor plate,NIJ III Plus bulletproof plate,10x12 inch SiC PE composite |
||
Produkt-Beschreibung
Silicon Carbide + UHMWPE Hybrid Protection Plate — The Ultimate Cost-Performance Formula
Why Hybrid Design Beats Pure Ceramic or Pure PE Every Time
| Armor Type | Weight (10x12) | NIJ Rating | M855 Stopped | Cost Index |
|---|---|---|---|---|
| SiC + UHMWPE Hybrid | 2.45 kg | III+ Special Threat | YES | 100% (baseline) |
| Alumina + PE Hybrid | 3.1 kg | III+ Special Threat | YES | 85% |
| Pure PE (UHMWPE Only) | 1.6 kg | III (M80 only) | NO | 110% |
| B₄C + PE Hybrid | 2.1 kg | III+ Special Threat | YES | 165% |
The HB-SIC-HYB-3P-1012 hybrid plate represents our optimized cost-performance design. By combining a 4.0mm SiC ceramic strike face with a 6.5mm UHMWPE composite backing, we achieve NIJ III+ special threat protection at a weight and price that neither pure ceramic nor pure PE can match.
- Alumina hybrid plates need thicker ceramic layers (6-7mm) to defeat M855, adding weight — our SiC hybrid is 21% lighter.
- Pure UHMWPE plates cannot stop M855 (SS109) penetrator rounds due to the steel tip piercing through the PE fibers — our SiC face shatters the penetrator on contact.
- Boron Carbide hybrids achieve similar performance but at a 65% cost premium — our SiC design gives you the same defeat capability at a fraction of the price.
Key Features
- NIJ III+ Special Threat Rated: Stops 7.62*51mm M80 NATO AND 5.56*45mm M855 (SS109) Green Tip penetrator rounds
- 4.0mm SiC Strike Face: Optimum thickness calculated for M855 steel penetrator defeat while minimizing weight
- 6.5mm UHMWPE Backing: Industry-standard High-grade PE laminate captures ceramic fragments and minimizes BFD
- Multi-Curve SAPI Cut: Anatomical fit for all-day wear comfort, compatible with standard SAPI/ESAPI plate carriers
- 6+3 Multi-Hit Proven: 6 rounds M80 plus 3 rounds M855 within the NIJ dispersion zone
Ideal For
- Protection units facing both 7.62mm and 5.56mm threats on the modern battlefield
- SWAT teams requiring M855/Green Tip defeat for urban operations
- Border patrol and counter-terrorism units needing multi-threat protection
Get the best cost-performance armor plate on the market. Contact our sales team for pricing, samples, and OEM branding options.
